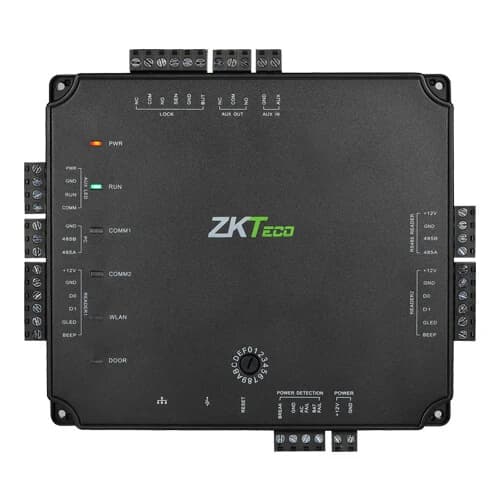

Atlas Prox Series

Number of Doors Controlled

Atlas-100: One Door Atlas-200: Two Doors Atlas-400: Four Doors

Number of Readers Supported

Atlas-100: 2 (Wiegand or OSDP Readers) Atlas-200: 4 (Wiegand or OSDP Readers) Atlas-400: 8 (Wiegand or OSDP Readers)

Types of Readers Supported

ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers

Number of Inputs

Atlas-100: 3 (1 Exit Button, 1 Door Sensor, 1 Aux) Atlas-200: 5 (2 Exit Buttons, 2 Door Sensors, 1 Aux) Atlas-400: 9 (4 Exit Buttons, 4 Door Sensors, 1 Aux)

Number of Outputs

Atlas-100: 2 (1 Form C relay for lock and 1 Form C relay for Aux output) Atlas-200: 3 (2 Form C relays for locks and 1 Form C relay for Aux output) Atlas-400: 5 (4 Form C relays for locks and 1 Form C relay for Aux output)

User Capacity

5,000

Events Database Capacity

10,000 transactions plus unlimited archive downloads

Weight

Atlas-100: 9 lbs (3.8 kg) Atlas-200: 10 lbs (4 kg) Atlas-400: 10 lbs (4 kg)

Communication

TCP/IP, Wi-Fi, Wiegand, OSDP

Browsers Supported

Chrome, Firefox, Edge

Enclosure

Powder Coated Aluminum

Mounting

Wall Mount

Power Supply

12V DC, 3A (PoE)

Dimensions (Bundle Only)

14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H)

Dimensions (Board Only)

Atlas-100: 6.3in. X 4.17in. (160mm X 140mm) Atlas-200: 7.75in. X 6.73in. (197mm X 171mm) Atlas-400: 7.75in X 6.73in. (197mm X 171mm)
