ZKTeco · Baggage Scanner

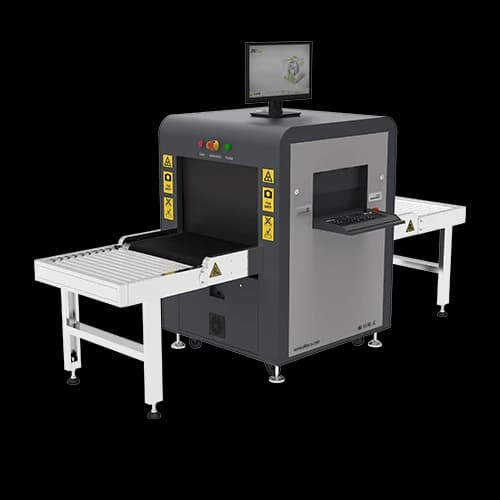

Baggage Scanners ZKX6040

Baggage Scanners ZKX6040 is a ZKTeco baggage scanner product in the Security Inspection range. The available official record includes Tunnel Dimensions (W*H), Conveyor Speed, Load on Conveyer.

Baggage Scanner
ZKTeco
27 listed specifications

WhatsApp enquiry View catalogue

About this product

Baggage Scanners ZKX6040 overview

Baggage Scanners ZKX6040 appears in ZKTeco India's Baggage Scanner section within the Security Inspection product range. This Minal Infotek record keeps the model, product image and official product information together for enquiry preparation.

The specification table below reflects the fields available on the official product page when checked on 2026-07-25. Confirm final compatibility, installation requirements and availability with Minal Infotek before ordering.

Product group: Security Inspection
Subcategory: Baggage Scanner
Brand: ZKTeco
Recorded model: Baggage Scanners ZKX6040
Verified fields: 27

Product record

Specifications

Tunnel Dimensions (W*H): 600 * 400 (mm)
Conveyor Speed: 0.3m/sec
Load on Conveyer: 180kg (evenly distributed)
Conveyor Height: 680 mm
Space Definition: Horizontal Φ1.0mm / Vertical Φ2.0mm
Steel Penetration: 35mm
Wire Resolution: 38AWG
Dual-energy Detector: Yes
Number of Colors in X-ray Image: 3
Dimensions (L*W*H): 1701 * 910 * 1305 (mm)
Package Dimensions (L*W*H): 1990 * 990 * 1485 (mm)
Package Weight: 480 kg
Film Safety: ASA / ISO1600 standard of film safety
Single Inspection Dosage Rate: ≤1.0μGy
Supported Software: ZKBio SIS
Communication Interface: RJ45 (TCP/IP)
Radiation Leak Dosag: 0.1μ Gy/h (5cm from the surface)
Storage Temperature: -20°C to +60°C
Power Supply: 230 VAC +/- 10% / 60/50 Hz (EU); 110 VAC +/- 10% / 60/50 Hz (US)
Power Consumption: Max. 1.0 kVA
Sound Pressure: 54dB
Hard Drive: 1TB
USB Port: 4 ports
Max. Storage: Up to 200,000 scanned images
Tube Current: 0.8 mA
Anode Voltage: 150 kV rated
Generator Cool: Seal oil cooling / 100%

Specifications and product image sourced from the official ZKTeco India product page. Please confirm current availability before ordering.
