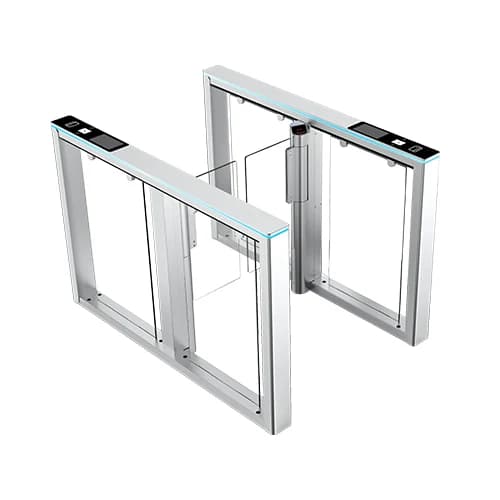

Comet Series

Application Environment

Indoor

Audio Indicator

Internal buzzer

Barrier Material

Swing

Barrier Movement

Swing

Certifications

CE, FCC

Chassis Colour

Silver (Standard), gold (Optional)

Chassis Material

Cast aluminium alloy (T=3mm)

Clutch

Mechanical clutch for anti-panic / anti-collision

Controller

PGIC controller (Recommendation) Others depends on dimensions fitting in (Optional)

Credential Options

Under mount RFID reader: (support model: ProID series, Armatura EP10C & Armatura EP20 series) under mount QR code reader: QR500 under mount fingerprint reader: FR1200 / FR1500 under mount facial recognition terminal: G4 Pro Top mount facial recogntion terminal: ProFaceX / Elite Pass / SpeedFace V5L

Dimension (L*W*H)

1500*115*1000mm (Standard)

Display

1 or 2*7" ISP touch monitor (Under mount facial recognition version only)

Door Leaf Material

Clear acrylic (H*W 630*295mm (Standard)) Clear tempered glass (H*W 630*295mm)

Fire Signal

Input for voltage free contact

Flow Rate

RFID: 30 passengers per minute QR Code: 30 passengers per minute Fingerprint: 20 passengers per minute Face: 15 passengers per minute

Gross Weight

Comet-S1000: 130kg Comet-S1200: 80kg

IR Sensors

8 Pairs (Standard) (High position)

Ingress Protection Rating

N/A (Waterproof and dustproof) N/A (Barrier only) (Vandal ressistant)

Lane Type

Comet-S1000: Single lane Comet-S1200: Dual wings (with comet-1000)

Lane Width (mm)

660mm (Standrad) 900mm (Optional)

Lid Material

Tempered glass (Black) (Standard)

Lid Options Authentication Methods

Streamlined under mount options: Fingerprint / RFID / QR Code / Fingerprint + RFID / Fingerprint+QR Code / Fingerprint+RFID+QR Code / Facial recognition with display Top mount option: mounting pole (Compatible with ProFace X / SpeedFace V5L/ Elite Pass)

MCBF

6 million

MTTR

Less than 60 minutes

Motherboard Communication

Fire alarm port(relay)*1, RS485 port*1

Motherboard Function

System configuration, access mode configuration, anti-pinch configuration, anti-tailgate configuration etc.

Motor

DC brushless motor

Movement Accuracy

≤1.5 Degree per movement

Movement Speed

0.8s per movement(open / Close timing)

Net Weight (kg)

Comet-S1000: 100 kg Comet-S1200: 65 kg

Noise Level

Less than 60 dB

Power Rating

20 VA (Stand by) 120 VA (Operation)

Product Delivery

Pre-assembled

Safety Features

Safety force sensing; Lower safety sensors; Accurate presence sensing ; Emitter/ receiver infrared sensors technology; Logic voltage 24V DC; Voltage free contact input for fire alarm fail state; Auto opening on power off; Anti-panic push opening in operation; Wide walkway for wheelchair or easier access; Accompanied wheelchair or child passage management (under mount facial recognition version)

Security Features

Anti-intrusion, Anti-tailgating, Wrong way enter alarm, Automatically close door no one pass

Site Preparation

Flat & level finished floor (Base plate in options for unfinished floor)

Supported Software

ZKBio CVSecurity (Depends on equipped access controller)

Visual Indicator

LED strip along the lid (7 Colour RGB, Customizable) blue = stand by steady green = normal use steady red = door closing flashing red = alarm

Working Humidity

95% RH (non-condensing)

Working Temperature

-28°C to 60°c

Specifications and product image sourced from the official ZKTeco India product page. Please confirm current availability before ordering.
