ZKTeco · Elevator Access Controller
EC16 & DEX16
EC16 & DEX16

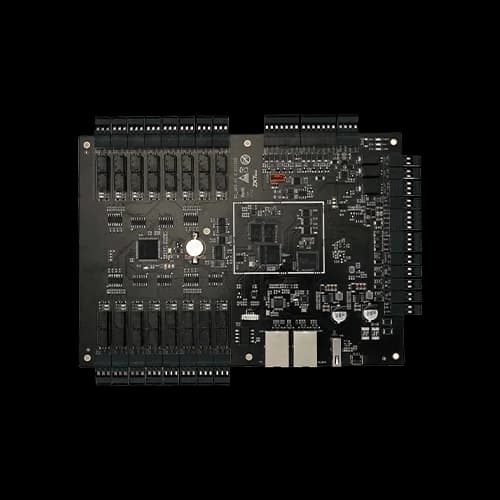

EC16 & DEX16 is a ZKTeco elevator access controller product in the Access Controllers range. The available official record includes Model, Fingerprint Capacity and Card Capacity.
- Elevator Access Controller
- ZKTeco
- 13 listed specifications
About this product
EC16 & DEX16 overview
EC16 & DEX16 appears in ZKTeco India's Elevator Access Controller section within the Access Controllers product range. This Minal Infotek record keeps the model, product image and available technical fields together for enquiry preparation.
The specification table below reflects the fields available on the official product page when checked on 2026-07-23. Confirm final door capacity, reader compatibility, network requirements and availability with Minal Infotek before ordering.
- Product group
- Access Controllers
- Subcategory
- Elevator Access Controller
- Brand
- ZKTeco
- Recorded model
- EC16 & DEX16
- Verified fields
- 13
Product record
Specifications
- Model
- EC16 & DEX16
- Fingerprint Capacity
- 30,000
- Card Capacity
- 100,000
- Transaction Capacity
- 200,000
- Communication
- TCP/IP ,USB Host ,Wiegand,RS485,
- Number of Ports
- 2 TCP/IP, 2 Wiegand (26/34/66 bits), 1 RS485 (OSDP), 1 RS485 (expansion board), 1 Open, 1 close, 1 AUX output, 1 AUX in, 1 voice output(coming soon), 1 LED Output(COMMRUN/PWR/GND), 1 FIRE,1 Emergency, 1 Power in, 1 USB 2.0 port
- Floor Button Control Relay
- 16 Dual Relay
- Functions
- Protocol: ZKTeco A & C Push Supported QR Code Reader : QR500/600 Series RS485 address Set by DIP switch Max Supported Expansion Board: 7pcs (DEX16) over RS485
- Supported Software
- ZKBio CVSecurity
- Dimensions(L*W*D)
- 165*230mm
- Certifications
- CE, FCC, ISO9001, ISO14001
- Operating Humidity
- : 10% to 90% RH
- Operating Temperature
- -20°C to 55°C
Specifications and product image sourced from the official ZKTeco India product page. Please confirm current availability before ordering.
