ZKTeco · RFID Reader
RS485 Reader Series

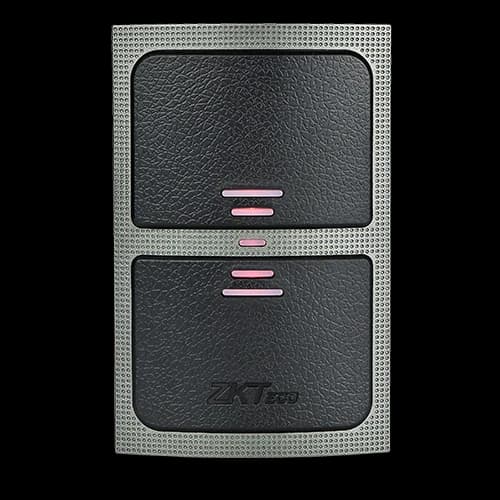

RS485 Reader Series
RS485 Reader Series is a ZKTeco rfid reader product in the Access Controllers range. The available official record includes Read Range, Reading Time and Input Port.
- RFID Reader
- ZKTeco
- 11 listed specifications
About this product
RS485 Reader Series overview
RS485 Reader Series appears in ZKTeco India's RFID Reader section within the Access Controllers product range. This Minal Infotek record keeps the model, product image and available technical fields together for enquiry preparation.
The specification table below reflects the fields available on the official product page when checked on 2026-07-23. Confirm final door capacity, reader compatibility, network requirements and availability with Minal Infotek before ordering.
- Product group
- Access Controllers
- Subcategory
- RFID Reader
- Brand
- ZKTeco
- Recorded model
- RS485 Reader Series
- Verified fields
- 11
Product record
Specifications
- Read Range
- KRxxx-E: Up to 10CM KRxxx-M: Up to 5CM
- Reading Time
- ≤ 200ms
- Input Port
- External LED Control External Buzzer Control
- Supported Panel
- InBio160, InBio260, InBio460
- Power Supply
- DC 6-14V / Max.70mA
- Operating Humidity
- 10% to 90% relative humidity non-condensing
- Material
- ABS + PC with texture
- LED
- Red and Green LEDs
- Ingress Protection Rating
- KR100M-RS: IP65
- Output Format
- RS485
- Operating Temperature
- -20°C to 65°C (-10° to +70°C)
Specifications and product image sourced from the official ZKTeco India product page. Please confirm current availability before ordering.
