ZKTeco · Swing Barrier
Saturn-S2000 Series
Saturn-S2000 Series
Saturn-S2000 Series is a ZKTeco swing barrier product in the Gate Automation range. The available official record includes Model Name, Audio Indicator and Barrier Material.
- Swing Barrier
- ZKTeco
- 31 listed specifications
About this product

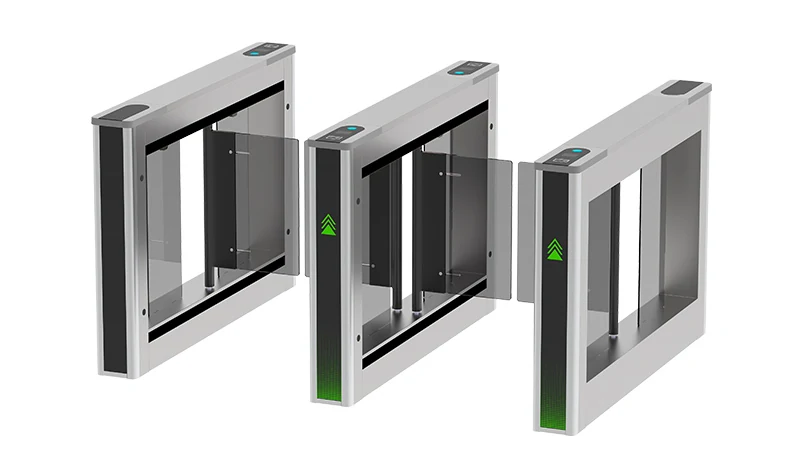

Saturn-S2000 Series overview
Saturn-S2000 Series appears in ZKTeco India's Swing Barrier section within the Gate Automation product range. This Minal Infotek record keeps the model, product image and available technical fields together for enquiry preparation.
The specification table below reflects the fields available on the official product page when checked on 2026-07-23. Confirm final dimensions, installation requirements, compatibility and availability with Minal Infotek before ordering.
- Product group
- Gate Automation
- Subcategory
- Swing Barrier
- Brand
- ZKTeco
- Recorded model
- Saturn-S2000 Series
- Verified fields
- 31
Product record
Specifications
- Model Name
- Saturn-S2000 Saturn-S2200
- Audio Indicator
- Internal speaker
- Barrier Material
- Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required.
- Barrier Movement
- Swing
- Chassis Colour
- Gray (Standard)
- Chassis Material
- Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column)
- Clutch
- Equipped
- Controller
- Compatible with C3 / InBio Series or 3rd-party controller
- Credential Options
- Under mount RFID reader: (support model: Pro ID Series, KR Series) Under mount fingerprint reader: FR1200 / FR1500S
- Dimension with Packing (L*W*H)
- Saturn-S2000: 1580 * 340 * 1270 (mm) (2pcs) Saturn-S2200: 1580 * 340 * 1270 (mm
- Emergency Mode
- Support (swing barrier open automatically)
- Flow Rate
- Facial Authentication: 15 passengers per minute QR Code: 30 passengers per minute RFID: 35 passengers per minute
- IR Sensors
- 12 pairs (standard) ;18 pairs (Optional)
- Ingress Protection Rating
- IP54 (water & dust proof)
- Lane Width (mm)
- 600~900mm (Optional) (Acrylic) Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access)
- Lid Material
- Stainless steel & Polycarbonate
- Lid Options Authentication Methods
- Streamlined under mount options: QR Code / RFID Surface mount option: Facial Authentication
- MCBF
- 5 million
- MTTR
- Less than 60 minutes
- Motherboard Communication
- Fire alarm port (relay)*1, RS485 port*1
- Motherboard Function
- System configuration, access control
- Motor
- DC brushless motor
- Movement Speed
- Average 1s per movement (Adjustable open/close timing)
- Noise Level
- Less than 60dB
- Packing Material
- Wooden
- Safety Features
- Voltage free contact input for fire alarm fail state automatic swing barrier open during power off
- Security Features
- Anti-tailgating, anti-pinch
- Security Level
- medium
- Site Preparation
- Flat & level finished floor (base plate in options for unfinished floor)
- Supported Software
- ZKBio CVSecurity
- Visual Indicator
- Top LED indicator: Blue=Door closed/stand by Green=Door opening Red=Door closing/alarm
Specifications and product image sourced from the official ZKTeco India product page. Please confirm current availability before ordering.
